If you own a truck or have ever been interested in the inner workings of one, then you know how important it is to have a good understanding of the different parts that make up the vehicle. From the engine and transmission to the brakes and suspension system, each component plays a crucial role in ensuring that your truck runs smoothly and safely. However, with so many parts and categories to keep track of, it can be challenging to keep everything straight. That’s why having access to a truck parts names and pictures PDF can be so helpful. In this article, we’ll take a closer look at why knowing these names and categories is so important, and how a PDF document can be an invaluable resource for any truck owner or enthusiast.
1. Engine Components
One of the most important parts of a truck is the engine. It is responsible for providing the power that makes the vehicle go. There are several components that make up the engine, including the pistons, valves, crankshaft, and camshaft.
The pistons are cylindrical components that move up and down within the engine block. They are responsible for compressing the air and fuel mixture in the combustion chamber, and then forcing it out of the engine through the exhaust system.
The valves are responsible for controlling the flow of air and fuel into the engine, as well as the flow of exhaust gases out of the engine. They open and close at precise intervals to ensure that the engine runs smoothly.
The crankshaft is the component that converts the up-and-down motion of the pistons into rotary motion. It is connected to the pistons via connecting rods, and rotates as the engine runs.
Finally, the camshaft is responsible for opening and closing the valves. It has lobes or “cams” that push against the valves, causing them to open and close at the appropriate times.
2. Transmission and Drivetrain Components
The transmission and drivetrain are responsible for transmitting power from the engine to the wheels. The transmission is the component that allows the driver to change gears, while the drivetrain comprises of the components that transfer power from the transmission to the wheels.
The transmission can be either manual or automatic. In a manual transmission, the driver must manually shift gears using a clutch pedal and a gear shift. In an automatic transmission, the car shifts gears automatically in response to changes in speed.
The drivetrain consists of several components, including the driveshaft, differential, and axles. The driveshaft is a long, cylindrical component that connects the transmission to the differential. The differential allows the wheels to turn at different speeds, which is necessary when making turns.
The axles connect the differential to the wheels, and they also allow the wheels to turn. In a rear-wheel drive vehicle, the power is transferred to the rear wheels via the driveshaft and rear axle. In a front-wheel drive vehicle, the power is transferred to the front wheels via the transmission and front axles.
3. Braking System Components
The braking system is one of the most important safety features on a truck. It is responsible for slowing down or stopping the vehicle when necessary. There are several components that make up the braking system, including the brake pads, rotors, calipers, and master cylinder.
The brake pads are small, curved components that press against the rotors when the brake pedal is pressed. The rotors are large, flat discs that spin with the wheels, and they provide the surface for the brake pads to press against.
The calipers are responsible for squeezing the brake pads against the rotors. When the brake pedal is pressed, the master cylinder sends hydraulic fluid to the calipers, which then press the brake pads against the rotors.
Finally, the master cylinder is the component that provides the hydraulic pressure to the calipers. When the brake pedal is pressed, it sends a signal to the master cylinder, which then sends hydraulic fluid to the calipers.
4. Suspension System Components
The suspension system is responsible for maintaining the stability and handling of the truck. It absorbs shocks from the road and keeps the wheels planted firmly on the ground. There are several components that make up the suspension system, including the shock absorbers, springs, and control arms.
The shock absorbers are responsible for absorbing the shocks that are produced by the road. They are cylindrical components that are filled with hydraulic fluid, and they compress and expand in response to bumps in the road.
The springs are responsible for supporting the weight of the truck and providing a smooth ride. They are usually made from steel, and they compress and expand in response to bumps in the road.
The control arms connect the suspension system to the frame of the truck. They are usually made from steel, and they help to maintain the proper alignment of the wheels.
5. Exhaust System Components
The exhaust system is responsible for removing the exhaust gases that are produced by the engine. It is also responsible for reducing the noise that is produced by the engine. There are several components that make up the exhaust system, including the exhaust manifold, catalytic converter, and muffler.
The exhaust manifold is responsible for collecting the exhaust gases that are produced by the engine. It is usually made from steel, and it is connected to the engine.
The catalytic converter is responsible for reducing the harmful emissions that are produced by the engine. It is usually made from ceramic, and it contains a catalyst that converts harmful gases into less harmful gases.
The muffler is responsible for reducing the noise that is produced by the engine. It is usually made from steel, and it contains baffles that absorb sound waves and reduce noise.
6. Electrical System Components
The electrical system is responsible for providing power to all of the electrical components in the truck. It is made up of several components, including the battery, alternator, and starter.
The battery is responsible for providing power to the electrical system when the engine is not running. It is usually located in the engine compartment, and it is connected to the starter and alternator.
The alternator is responsible for providing power to the electrical system when the engine is running. It is usually located near the engine, and it is connected to the battery and electrical system.
The starter is responsible for turning the engine over when the driver turns the key in the ignition. It is usually located near the engine, and it is connected to the battery and alternator.
7. Fuel System Components

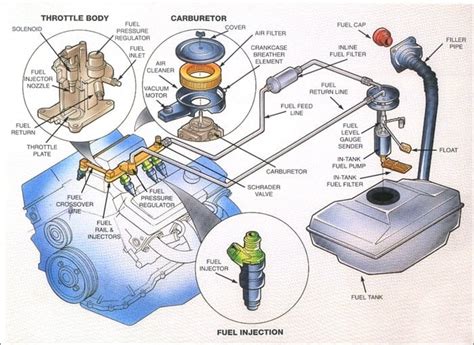

The fuel system is responsible for providing fuel to the engine. There are several components that make up the fuel system, including the fuel tank, fuel pump, and fuel injectors.
The fuel tank is responsible for storing the fuel that is used by the engine. It is usually located near the rear of the truck, and it is connected to the fuel pump.
The fuel pump is responsible for delivering fuel from the fuel tank to the engine. It is usually located near the engine, and it is connected to the fuel tank and fuel injectors.
The fuel injectors are responsible for delivering fuel to the engine. They are usually located near the engine, and they spray fuel into the engine at precise intervals.
8. Cooling System Components

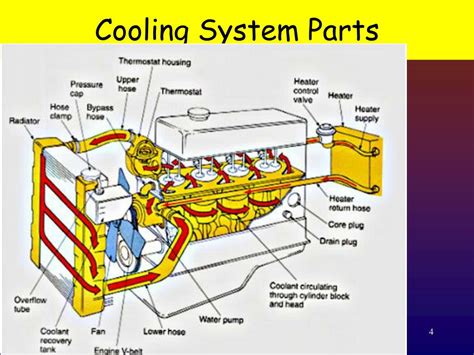

The cooling system is responsible for maintaining the proper operating temperature of the engine. It is made up of several components, including the radiator, water pump, and thermostat.
The radiator is responsible for removing heat from the engine. It is usually located at the front of the truck, and it is connected to the engine via hoses.
The water pump is responsible for circulating coolant through the engine and radiator. It is usually located near the front of the engine, and it is powered by a belt.
The thermostat is responsible for regulating the flow of coolant through the engine. It is usually located near the top of the engine, and it remains closed until the engine reaches the proper operating temperature.
9. Steering System Components

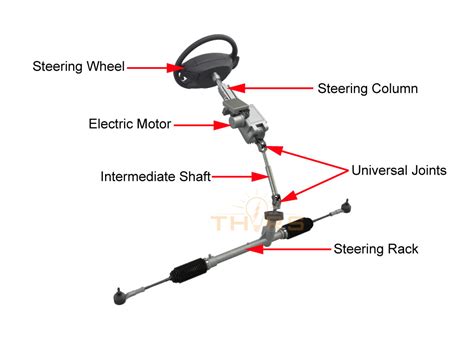

The steering system is responsible for allowing the driver to control the direction of the truck. There are several components that make up the steering system, including the steering wheel, steering column, and steering rack.
The steering wheel is the component that the driver uses to turn the truck. It is usually located near the driver’s seat, and it is connected to the steering column.
The steering column is responsible for transmitting the motion of the steering wheel to the steering rack. It is usually located inside the dashboard, and it is connected to the steering wheel and steering rack.
The steering rack is the component that actually turns the wheels. It is usually located near the wheels, and it is connected to the steering column.
10. Body and Interior Components
Finally, there are several components that make up the body and interior of the truck. These include the frame, body panels, seats, and dashboard.
The frame is the backbone of the truck, and it supports all of the other components. It is usually made from steel, and it is designed to be strong and durable.
The body panels are the components that give the truck its shape. They are usually made from steel or aluminum, and they are designed to be sleek and aerodynamic.
The seats are the components that provide a comfortable place for the driver and passengers to sit. They are usually made from foam and covered in upholstery.
The dashboard is the component that houses all of the gauges and controls. It is usually made from plastic or vinyl, and it is designed to be easy to read and use.
10 Common Truck Parts and Their Functions
Trucks are an essential part of transportation worldwide, and they are responsible for transporting goods and products from one place to another. But have you ever wondered what the different parts of trucks are called and how they function? Well, you’re in luck! In this section, we’ll take a closer look at some of the most common truck parts and their functions.
1. Engine
The engine is the heart of the truck, it converts fuel into energy to power the rest of the vehicle. It’s usually located at the front of the truck, and it’s responsible for providing the necessary power to the wheels.
2. Transmission
The transmission is responsible for controlling the power of the engine and transmitting it to the wheels. It enables smooth driving and helps to transfer the power from the engine to the wheels.
3. Differential
The differential distributes the power from the transmission to the wheels while allowing them to rotate at different speeds. It plays an essential role in ensuring the truck’s stability and control while driving.
4. Suspension
The suspension system helps to absorb shock and vibrations caused by uneven road surfaces. It increases the overall comfort of riding and ensures a smooth ride for passengers and the cargo being transported.
5. Brakes
The braking system is responsible for stopping the truck. It helps regulate the vehicle’s speed and ensure that it stops when needed. The braking system consists of many parts, including brake pads, rotors, drums, and calipers.
6. Wheels and Tires
The wheels and tires are responsible for the vehicle’s movement and help to ensure a smooth ride. The wheels are the circular metal components on which the tires are mounted.
7. Axles
The axles are responsible for transferring power from the transmission to the wheels. They are usually located between the wheels and the transmission.
8. Fuel Tank
The fuel tank is the container that holds fuel for the engine. The fuel tank is usually located at the rear of the truck and is accessible from the outside.
9. Exhaust System
The exhaust system’s primary function is to remove harmful gases produced by the engine and direct them out of the vehicle. It’s located at the rear of the truck and consists of many parts, including pipes, mufflers, and catalytic converters.
10. Electrical System
The electrical system is responsible for powering the vehicle’s electrical components, including the headlights, taillights, horn, and radio. It’s often powered by the battery, which stores electrical energy.
In summary, trucks consist of many parts, each with its unique function and purpose. Each part is essential in ensuring that the truck functions correctly and efficiently. Knowing the truck parts’ names and functions is crucial for proper maintenance and repair to keep the vehicle running smoothly and safely.
Common Truck Parts and Their Functions
Trucks are synonymous with their sturdy and robust structure that can withstand a lot of wear and tear. From the Chassis to the cabin, each part of a truck plays a crucial role in its performance, safety, and durability. While there are thousands of parts that go into the construction of a truck, some are more important than others. In this section, we will discuss some of the most common truck parts and how they function.
Chassis and Frame
The chassis is the soul of a truck as it is the foundation on which the entire truck is built. It is made up of the frame, suspension, and wheels. The frame is a spine-like structure that supports the weight of the truck and its load. It is usually made of steel or aluminum and can have different configurations. The most common is the ladder frame, which is simple, strong, and easy to manufacture. Another popular variant is the spaceframe that uses a network of tubes to offer greater strength and rigidity.
Suspension System
The suspension system is responsible for absorbing shocks and vibrations from the road. It comprises several components like springs, shock absorbers, and linkages that work together to provide a smooth ride. The suspension system also plays a critical role in the handling and stability of the truck. A poor suspension system can result in premature wear of the tires, uneven tire wear, and an uncomfortable ride.
Drivetrain and Transmission
The drivetrain is responsible for transferring power from the engine to the wheels. It includes the transmission, clutch, driveshaft, and differential. The transmission is a gearbox that provides different gear ratios to match the speed and load of the truck. It can be manual or automatic, depending on the truck’s application.
The differential is a device that allows the wheels to rotate at different speeds while turning. It is essential for the truck’s maneuverability and stability, especially in off-road conditions.
Braking System
The brake system is arguably the most critical safety feature in a truck. It comprises several components like the hydraulic master cylinder, brake lines, brake pads, and rotors. The braking system’s function is to slow down or stop the truck when necessary. A faulty brake system can result in accidents, injuries, or even fatalities.
Electrical System
The electrical system is responsible for powering all the electrical and electronic components of the truck. It includes the battery, alternator, starter motor, and wiring. The electrical system powers the lights, horn, wipers, air conditioning, and other comfort features. It also provides power to the engine’s sensors and the onboard computer, which controls the engine’s performance. A malfunctioning electrical system can lead to several problems, including starting issues, poor fuel economy, and engine misfires.
| Truck Part | Function |
|---|---|
| Chassis | Supports the weight of the truck and provides a base for all other parts |
| Suspension System | Absorbs shocks and vibrations from the road, provides a smooth ride |
| Drivetrain | Transfers power from the engine to the wheels |
| Braking System | Slows down or stops the truck when necessary |
| Electrical System | Powers all the electrical and electronic components of the truck |
In conclusion, understanding the common truck parts and their functions is essential for anyone who owns or operates a truck. While there are many parts that go into the making of a truck, the five we have discussed in this section are among the most critical. Knowing how they work and how to maintain them can help ensure that your truck stays in top shape for years to come.
